Comprehensive Cardiac Center-Outpatient (CCCOP)

Comprehensive Cardiac Center (CCC) Initial Patient Population

Data collection for five new standardized performance measures are required for Comprehensive Cardiac Center (CCC) certification. In addition, a second set of optional measures are available. All currently certified CCC organizations, as well as those seeking initial certification, are required to implement data collection on the five mandatory standardized measures.

The measures chosen for implementation within the CCC certification program address major aspects of cardiac care, within the following 4 domains: cardiac rehabilitation, myocardial infarction (MI), heart failure (HF), and cardiac surgery (coronary artery bypass graft, cardiac valve repair/replacement and percutaneous coronary intervention [PCI]). The measures are separated into mandatory and optional measures and then again by inpatient and outpatient status. It is highly recommended that all organizations collect the optional measures to assist them with advancing quality of care for the cardiac patients they serve. The certification program also includes 5 measures that are currently used in The Joint Commission’s Advanced Heart Failure Certification program (ACHF-01, ACHF-02, ACHF-06, ACHFOP-03, and ACHFOP-06). Organizations should follow the ACHF and ACHFOP initial patient population algorithm’s that are posted to The Joint Commission’s Measure Specifications Manual to determine the patient population for the heart failure measures.

There are 5 mandatory measures:

• CCCIP-01 High-intensity Statin Prescribed at Discharge
• CCCIP-02 Mineralocorticoid Receptor Antagonist (MRA) Prescribed at Discharge
• ACHF-01 Beta-blocker Therapy (i.e. Bisoprolol, Carvedilol, or Sustained-release Metoprolol Succinate Prescribed for LVSD at Discharge)
• ACHF-02 Post-discharge Appointment for Heart Failure Patients
• ACHF-06 Post-discharge Evaluation for Heart Failure Patients

There are 8 optional measures (3 inpatient and 5 outpatient):

• CCCIP-03 Cardiac Rehabilitation Referral from an Inpatient Setting
• CCCIP-04 Cardiac Rehabilitation Referral for Heart Failure Patients with Reduced Ejection Fraction from an Inpatient Setting
• CCCIP-05 Cardiac Rehabilitation Enrollment from an Inpatient Setting
• CCCOP-01 Cardiac Rehabilitation Referral from an Outpatient Setting
• CCCOP-02 Cardiac Rehabilitation Referral for Heart Failure Patients with Reduced Ejection Fraction from an Outpatient Setting
• CCCOP-03 Cardiac Rehabilitation Enrollment from an Outpatient Setting
• ACHFOP-03 Hospital Outpatient Mineralocorticoid Receptor Antagonists (MRA)
• ACHFOP-06 Hospital Outpatient Discussion of Advance Directives/Advance Care Planning

All the mandatory measures capture the quality of care provided to myocardial infarction (MI) and heart failure patients. Organizations are required to submit inpatient cases for their heart failure patient population and observation and inpatient cases for their MI patient population for the mandatory measures. If the organization submits data for the optional inpatient measures, submitting observation cases is optional.

In order to assist organizations in determining their patient populations for performance measurement, The Joint Commission has defined outpatient, inpatient, and observation. Patients assigned as outpatients are defined as, a patient who is not hospitalized overnight but who visits a hospital, clinic, or associated facility for diagnosis or treatment. CPT® codes are utilized to bill outpatient cases when the patient undergoes a procedure. Any patient who has outpatient surgery that is billed using a CPT® code should be assigned to the outpatient bucket to determine cases for abstraction.

Patients assigned as inpatient or observation are defined as, a patient who is hospitalized overnight. ICD-10 PCS codes are utilized to bill inpatient and observation cases when the patient undergoes a procedure. Any patient who is listed as an inpatient

Comprehensive Cardiac Center (CCC) Outpatient Initial Patient Population
The population for this outpatient measure set is identified using the following 5 data elements:

• Birthdate
• EM Code
• ICD-10-PCS Principal Diagnosis Code
• Patients with an HCPCS/CPT® Procedure Code
• Outpatient Encounter Date

Patients seen in the outpatient setting are included in the outpatient initial patient population if they have: Patient Age (Outpatient Encounter Date — Birthdate) ≥18 years old and an E/M Code on Appendix A, Table 2.0 for a hospital outpatient encounter.

AND

Subpopulation Medial - heart failure and myocardial infarction identified by:

• ICD-10-CM Principal Diagnosis Code as defined in (HF) Appendix A, Table 2.1, or (MI) Appendix A, Table 2.3

Surgical -PCI, ICD identified by:

• HCPCS/CPT® code defined in Appendix A, Table 2.11 (PCI)

---

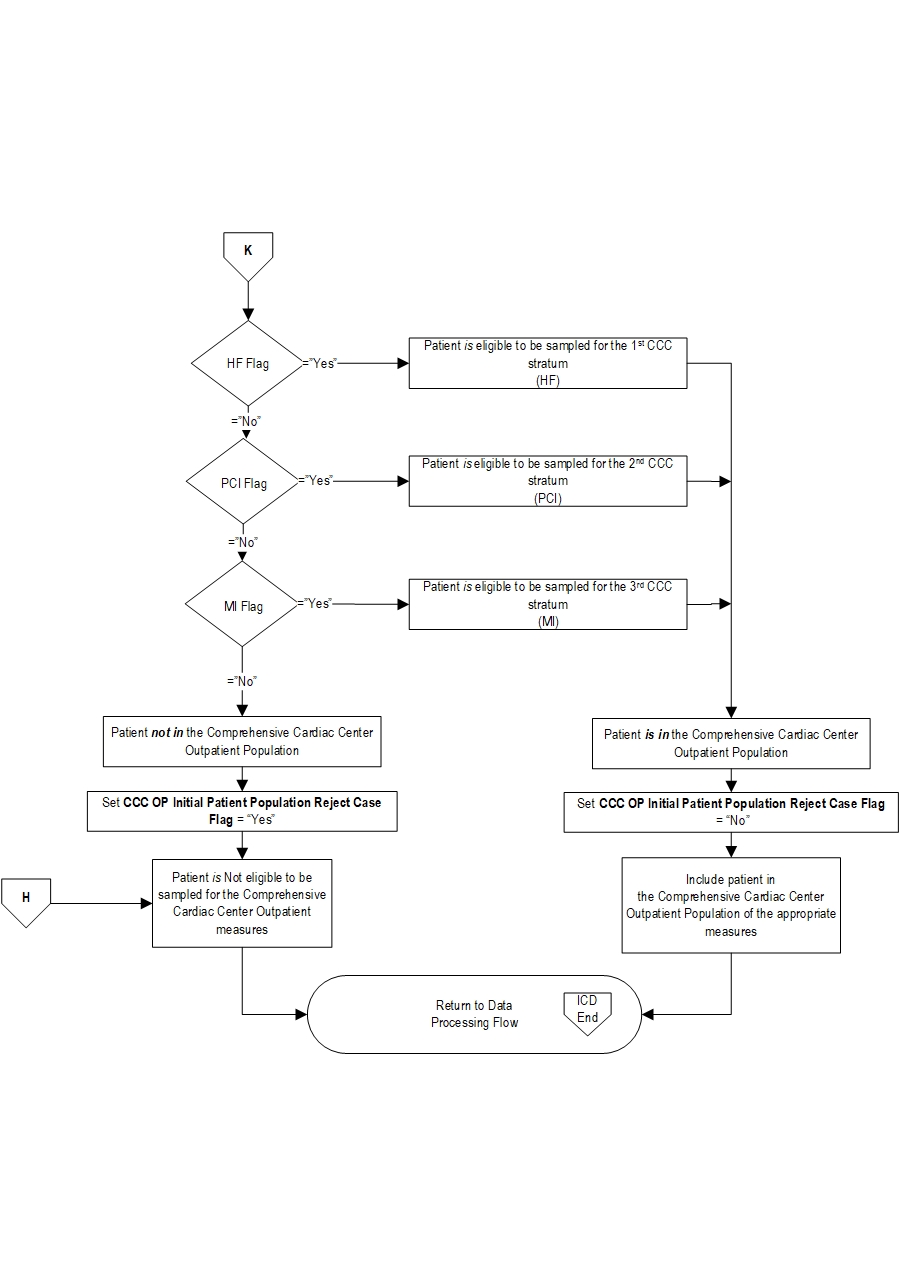

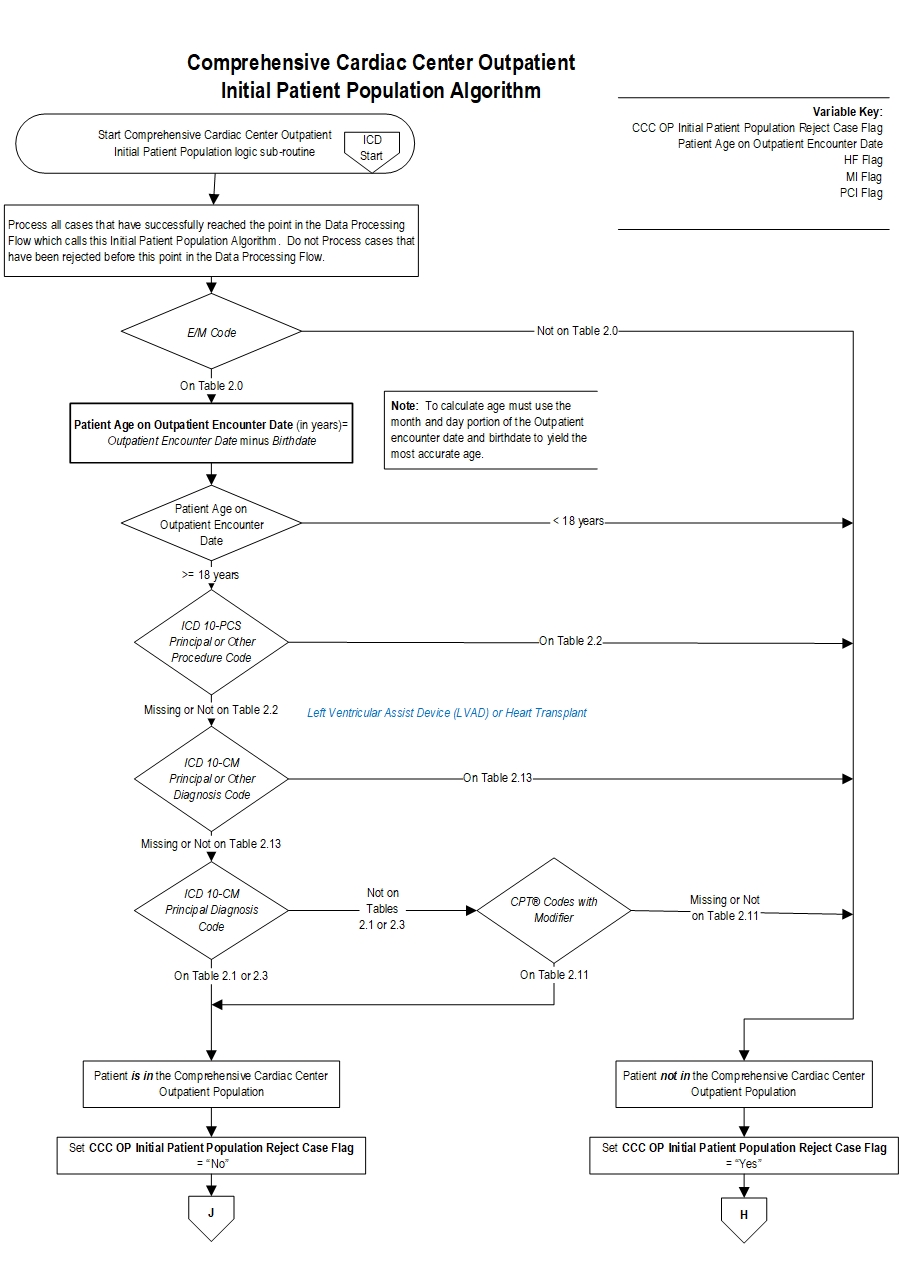

Initial Patient Population Algorithm

Comprehensive Cardiac Center Outpatient Initial Patient Population Algorithm Narrative

Variable Key: CCC OP Initial Patient Population Reject Case Flag, Patient Age on Outpatient Encounter Date, HF Flag, MI Flag, PCI Flag

1. Start Comprehensive Cardiac Center Outpatient Initial Patient Population logic sub-routine. Process all cases that have successfully reached the point in the Data Processing Flow which calls this Initial Patient Population Algorithm. Do not process cases that have been rejected before this point in the Data Processing Flow.

2. Check E/M Code

1. If the E/M Code is not on Table 2.0, the Patient not in the Comprehensive Cardiac Center Outpatient Population. Set CCC OP Initial Patient Population Reject Case Flag is equal to Yes. Patient is Not eligible to be sampled for the Comprehensive Cardiac Center Outpatient measures. Return to Data Processing Flow section.
2. If the E/M Code is on Table 2.0, continue processing and proceed to check Patient Age on Outpatient Encounter Date.

3. Calculate Patient Age on Outpatient Encounter Date. Patient Age, in years, is equal to the Outpatient Encounter Date minus the Birthdate. Use the month and day portion of outpatient encounter date and birthdate to yield the most accurate age.

4. Check Patient Age on Outpatient Encounter Date:

1. If the Patient Age on Outpatient Encounter Date is less than 18 years, the Patient not in the Comprehensive Cardiac Center Outpatient Population. Set CCC OP Initial Patient Population Reject Case Flag is equal to Yes. Patient is Not eligible to be sampled for the Comprehensive Cardiac Center Outpatient measures. Return to Data Processing Flow section.
2. If the Patient Age is greater than or equal to 18 years, continue processing and proceed to check ICD 10-PCS Principal or Other Procedure Code.

5. Check ICD-10-PCS Principal or Other Procedure Code

1. If the ICD-10- PCS Principal or Other Procedure Code is on Table 2.2, the Patient not in the Comprehensive Cardiac Center Outpatient Population. Set CCC OP Initial Patient Population Reject Case Flag is equal to Yes. Patient is Not eligible to be sampled for the Comprehensive Cardiac Center Outpatient measures. Return to Data Processing Flow section.
2. If the ICD-10- PCS Principal or Other Procedure Code is Missing or None on Table 2.2, continue processing and proceed to check ICD-10-CM Principal or Other Diagnosis Code.

6. Check ICD-10-CM Principal or Other Diagnosis Code

1. If the ICD-10- CM Principal or Other Diagnosis Code is on Table 2.13, the Patient not in the Comprehensive Cardiac Center Outpatient Population. Set CCC OP Initial Patient Population Reject Case Flag is equal to Yes. Patient is Not eligible to be sampled for the Comprehensive Cardiac Center Outpatient measures. Return to Data Processing Flow section.
2. If the ICD-10- CM Principal or Other Diagnosis Code is Missing or None on Table 2.13, continue processing and proceed to check ICD 10-CM Principal Diagnosis Code.

7. Check ICD-10-CM Principal Diagnosis Code

1. If the ICD-10- CM Principal Diagnosis Code is not on Tables 2.1 or 2.3, continue processing and proceed to check CPT® Codes with Modifier
2. If the ICD-10- CM Principal Diagnosis Code is on Table 2.1 or 2.3, patient is in the Comprehensive Cardiac Center Outpatient Population. Set CCC OP Initial Patient Population Reject Case Flag is equal to No, continue processing and proceed to step 9 to check HF Flag, MI Flag, and PCI Flag.

8. Check CPT® Codes with Modifier

1. If the CPT® Codes with Modifier are Missing or Not on Table 2.11 the Patient not in the Comprehensive Cardiac Center Outpatient Population. Set CCC OP Initial Patient Population Reject Case Flag is equal to Yes. Patient is Not eligible to be sampled for the Comprehensive Cardiac Center Outpatient measures. Return to Data Processing Flow section.
2. If the CPT® Codes with Modifier is on Table 2.11, patient is in the Comprehensive Cardiac Center Outpatient Population. Set CCC OP Initial Patient Population Reject Case Flag is equal to No, continue processing and proceed to check HF Flag, MI Flag, and PCI Flag.

9. Set HF Flag is equal to No. Set MI Flag is equal to No. Set PCI Flag is equal to No, continue processing and proceed to check ICD-10-CM Principal Diagnosis Code.

10. Check ICD-10-CM Principal Diagnosis Code

1. If the ICD-10- CM Principal Diagnosis Code is on Table 2.1. Set HF Flag is equal to Yes. Patient is in the HF subpopulation, continue processing and proceed to Step 12 to check CPT® Codes with Modifier.

2. If the ICD-10- CM Principal Diagnosis Code is not on Table 2.1, continue processing and proceed to check ICD-10-CM Principal Diagnosis Code.


11. Check ICD-10-CM Principal Diagnosis Code

1. If the ICD-10-CM Principal Diagnosis Code is on Table 2.3. Set MI Flag is equal to Yes. Patient is in the MI subpopulation, continue processing and proceed to check CPT® Codes with Modifier.

2. If the ICD-10- CM Principal Diagnosis Code is not on Table 2.3, continue processing and proceed to check CPT® Codes with Modifier.


12. Check CPT® Codes with Modifier

1. If CPT® Codes with Modifier is on Table 2.11. Set PCI Flag is equal to Yes. Patient is in the PCI subpopulation, continue processing and proceed to check HF Flag.

2. If CPT® Codes with Modifier is not on Table 2.11, continue processing and proceed to check HF Flag.


13. Check HF Flag

1. If the HF Flag is equal to Yes. Patient is eligible to be sampled for the 1st CCC stratum (HF). Patient is in the Comprehensive Cardiac Center Outpatient Population. Set CCC OP Initial Patient Population Reject Case Flag is equal to No. Include patient in the Comprehensive Cardiac Center Outpatient Population of the appropriate measures. Return to Data Processing Flow.

2. If the HF Flag is equal to No, continue processing and proceed to check PCI Flag.


14. Check PCI Flag

1. If the PCI Flag is equal to Yes. Patient is eligible to be sampled for the 2nd CCC stratum (PCI). Patient is in the Comprehensive Cardiac Center Outpatient Population. Set CCC OP Initial Patient Population Reject Case Flag is equal to No. Include patient in the Comprehensive Cardiac Center Outpatient Population of the appropriate measures. Return to Data Processing Flow.

2. If the PCI Flag is equal to No, continue processing and proceed to check MI Flag.


15. Check MI Flag

1. If the MI Flag is equal to Yes. Patient is eligible to be sampled for the 3rd CCC stratum (MI). Patient is in the Comprehensive Cardiac Center Outpatient Population. Set CCC OP Initial Patient Population Reject Case Flag is equal to No. Include patient in the Comprehensive Cardiac Center Outpatient Population of the appropriate measures. Return to Data Processing Flow.

2. If the MI Flag is equal to No, Patient is not in the Comprehensive Cardiac Center Outpatient Population. Set CCC OP Initial Patient Population Reject Case Flag is equal to Yes. Patient is Not eligible to be sampled for the Comprehensive Cardiac Center Outpatient measures. Return to Data Processing Flow section.


---

CCC Sample Size Requirements

Hospitals that choose to sample have the option of sampling quarterly or monthly. A hospital may choose to use a larger sample size than is required. Hospitals whose patient population size is less than the minimum number of cases per quarter for the measure set cannot sample.

Regardless of the option used, hospital samples must be monitored to ensure that sampling procedures consistently produce statistically valid and useful data. Due to exclusions, hospitals selecting sample cases MUST submit AT LEAST the minimum required sample size.

Sample sizes are based on the hospital’s patient population for each measure category. Once the patient population for each measure category is determined the coinciding measures should be abstracted for the measure category population. An asterisk (*) after the listed measures denotes the mandatory standardized measures that certified organizations must abstract data for. The additional measures that are listed are optional.

Measure Category	Measures
Heart Failure	CCCIP-02*, ACHF-01*, ACHF-02*, ACHF-06*, CCCIP-04, CCCOP-02, ACHFOP-03, ACHFOP-06
MI	CCCIP-01*, CCCIP-03, CCCOP-01, CCCOP-03
PCI/CABG/Valve	CCCIP-03, CCCIP-05, CCCOP-01 (PCI only), CCCOP-03 (PCI only)

*Mandatory standardized measures that certified organizations must abstract.

Sampling is a process of selecting a representative part of a population to estimate the organization’s performance without collecting data for its entire population. Using a statistically valid sample, an organization can measure its performance in an effective and efficient manner. Sampling is a particularly useful technique for performance measures that require primary data collection from a source, such as the medical record. Sampling should not be used unless the organization has a large number of cases in the measure population, because a fairly large number of sample cases is needed to achieve a representative sample of the population of interest. To obtain statistically valid sample data, the sample size should be carefully determined and the sample cases should be randomly selected in such a way that the individual cases in the population have an equal chance of being selected. Only when the sample data truly represent the whole population can the sample-based performance measure data be meaningful and useful.

Sampling Approach:

• Simple random sampling - selecting a sample size (n) from a population of size (N) in such a way that every case has the same chance of being selected. Systematic random sampling - selecting every kth record from a population of size N in such a way that a sample size of n is obtained, where k ≤ N/n. The first sample record (i.e., the starting point) must be randomly selected before taking every kth record. This is a two-step process: a) randomly select the starting point by choosing a number between one and k using a table of random numbers or a computer-generated random number; and b) then select every kth record thereafter until the selection of the sample size is completed.

The following sample size tables for each option automatically build in the number of cases needed to obtain the required sample sizes. For information concerning how to perform sampling, refer to the Population and Sampling Specifications section in this manual.

Quarterly Sampling Hospitals performing quarterly sampling for CCC must ensure that it has determined a patient population for each measure category listed below and that the sample size per measure category meets the following conditions:

Measure Category	Average Quarterly Patient Population Size "N"	Minimum Required Sample Size "n"
Heart Failure	≥ 1516	304
	381 - 1515	20% of Patient Population size
	76-380	76
	0 - 75	No sampling; 100% Patient Population required

Measure Category	Average Quarterly Patient Population Size "N"	Minimum Required Sample Size "n"
MI	≥ 1516	304
	381 - 1515	20% of Patient Population size
	76-380	76
	0 - 75	No sampling; 100% Patient Population required

Measure Category	Average Quarterly Patient Population Size "N"	Minimum Required Sample Size "n"
PCI	≥ 1516	304
	381 - 1515	20% of Patient Population size
	76-380	76
	0 - 75	No sampling; 100% Patient Population required

Measure Category	Average Quarterly Patient Population Size "N"	Minimum Required Sample Size "n"
CABG	≥ 1516	304
	381 - 1515	20% of Patient Population size
	76-380	76
	0 - 75	No sampling; 100% Patient Population required

Measure Category	Average Quarterly Patient Population Size "N"	Minimum Required Sample Size "n"
Valve	≥ 1516	304
	381 - 1515	20% of Patient Population size
	76-380	76
	0 - 75	No sampling; 100% Patient Population required

Monthly Sampling Hospitals performing monthly sampling for CCC must ensure that it has determined a patient population for each measure category listed below and that the sample size per measure category meets the following conditions:

Measure Category	Average Quarterly Patient Population Size "N"	Minimum Required Sample Size "n"
Heart Failure	≥ 506	102
	131 - 505	20% of Patient Population size
	26-130	26
	<26	No sampling; 100% Patient Population required

Measure Category	Average Quarterly Patient Population Size "N"	Minimum Required Sample Size "n"
MI	≥ 506	102
	131 - 505	20% of Patient Population size
	26-130	26
	<26	No sampling; 100% Patient Population required

Measure Category	Average Quarterly Patient Population Size "N"	Minimum Required Sample Size "n"
PCI	≥ 506	102
	131 - 505	20% of Patient Population size
	26-130	26
	<26	No sampling; 100% Patient Population required

Measure Category	Average Quarterly Patient Population Size "N"	Minimum Required Sample Size "n"
CABG	≥ 506	102
	131 - 505	20% of Patient Population size
	26-130	26
	<26	No sampling; 100% Patient Population required

Measure Category	Average Quarterly Patient Population Size "N"	Minimum Required Sample Size "n"
Valve	≥ 506	102
	131 - 505	20% of Patient Population size
	26-130	26
	<26	No sampling; 100% Patient Population required

Sample Size Examples

• Quarterly sampling:

  • A hospital’s CCC patient population size per measure category, during the 2nd quarter, has been:

    • 2nd quarter patient populations

      • Heart Failure-650 patients
      • MI-345 patients

      • PCI-62 patients

      • CABG-80 patients

      • Valve-35 patients

    • The required sample size per measure category for the 2nd quarter, would be:
      • Heart Failure-130 patients (650 patients per quarter during the past quarter x 20%=130)
        • The hospital will abstract the following mandatory measures and if the organization chooses the additional optional measures for these 130 heart failure patients:
          • CCCIP-02 - mandatory
          • ACHF-01 - mandatory
          • ACHF-02 - mandatory
          • ACHF-06 - mandatory
          • CCCIP-04 -optional
          • CCCOP-02 - optional
          • ACHFOP-03 – optional
          • ACHFOP-06 - optional
      • MI-76 patients
        • The hospital will abstract the following mandatory measures and if the organization chooses the additional optional measures for these 76 MI patients:
          • CCCIP-01 - mandatory
          • CCCIP-03 - optional
          • CCCOP-01 - optional
          • CCCOP-03 - optional
      • PCI- 62 patients
        • No sampling, 100% of patient population required if the organization chooses to abstract the following optional measures:
          • CCCIP-03 - optional
          • CCCIP-05 - optional
          • CCCOP-01 - optional
          • CCCOP-03 - optional
      • CABG-76 patients
        • If the organization chooses, the following optional measures could be abstracted for these 76 CABG patients:
          • CCCIP-03 - optional
          • CCCIP-05 - optional
      • Valve-35 patients
        • No sampling, 100% of patient population required if the organization chooses to abstract the following optional measures:
          • CCCIP-03 - optional
          • CCCIP-05 - optional

• Monthly sampling:

  • A hospital's CCC patient population size during the month of February, per measure category, has been:

    • February patient populations

      • Heart Failure-400 patients
      • MI-345 patients

      • PCI-80 patients

      • CABG-35 patients

      • Valve-20 patients

    • The required sample size, per measure category, for the February would be:
      • Heart Failure-80 patients (400 February patients x 20%=80)
        • The hospital will abstract the following mandatory measures and if the organization chooses, the additional optional measures for these 80 heart failure patients:
          • CCCIP-02 - mandatory
          • ACHF-01 - mandatory
          • ACHF-02 - mandatory
          • ACHF-06 - mandatory
          • CCCIP-04 -optional
          • CCCOP-02 - optional
          • ACHFOP-03 – optional
          • ACHFOP-06 - optional
      • MI-69 patients (345 February patients x 20%=69)
        • The hospital will abstract the following mandatory measures and if the organization chooses, the additional optional measures for these 69 MI patients:
          • CCCIP-01 - mandatory
          • CCCIP-03 - optional
          • CCCOP-01 - optional
          • CCCOP-03 - optional
      • PCI- 26 patients
        • If the organization chooses, the following optional measures could be abstracted for their 26 PCI patients:
          • CCCIP-03 - optional
          • CCCIP-05 - optional
          • CCCOP-01 - optional
          • CCCOP-03 - optional
      • CABG-26 patients
        • If the organization chooses, the following optional measures could be abstracted for their 26 PCI patients:
          • CCCIP-03 - optional
          • CCCIP-05 - optional
      • Valve-20 patients
        • No sampling, 100% of patient population required, if the organization chooses to abstract the following optional measures could be abstracted for all their valve patients:
          • CCCIP-03 - optional
          • CCCIP-05 - optional
